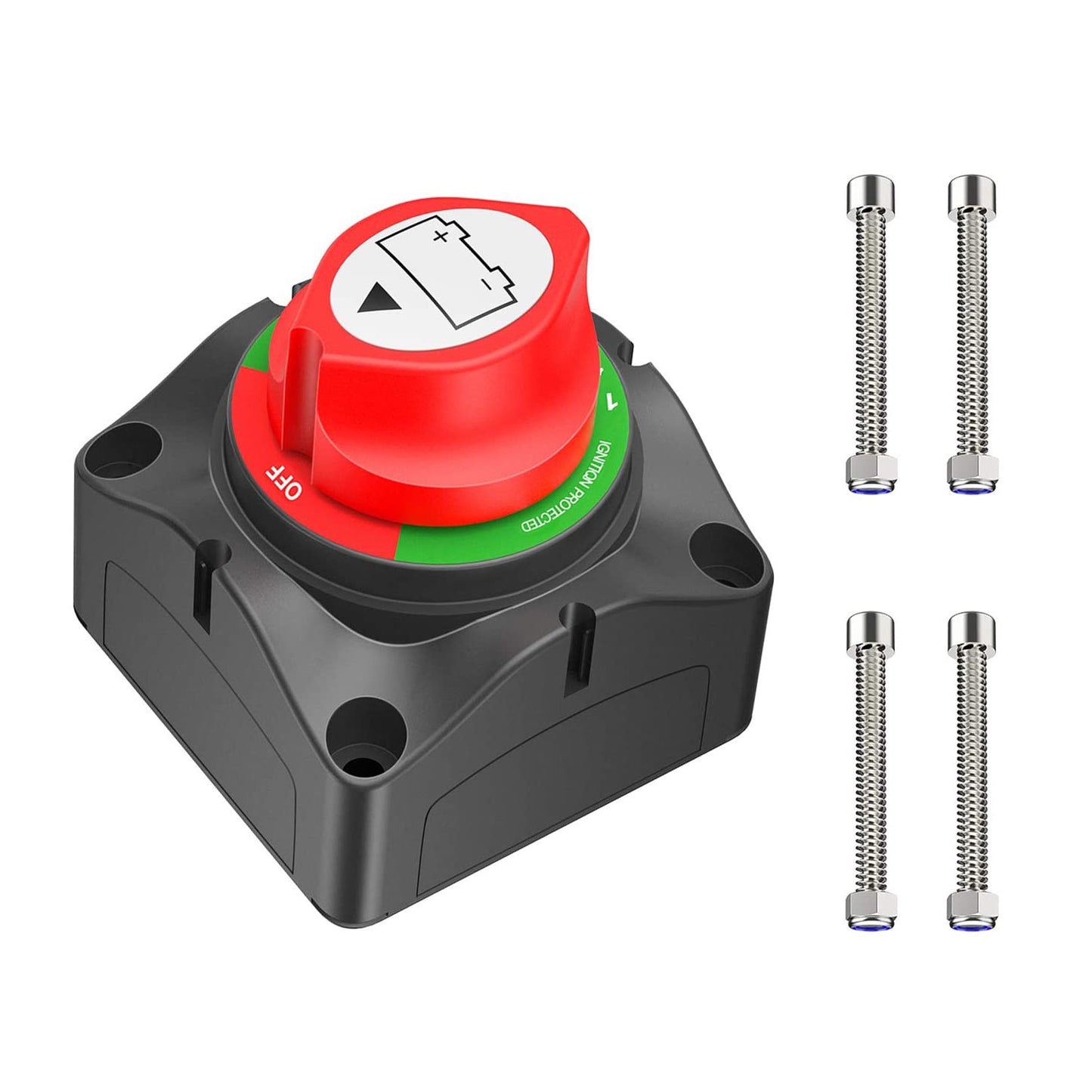

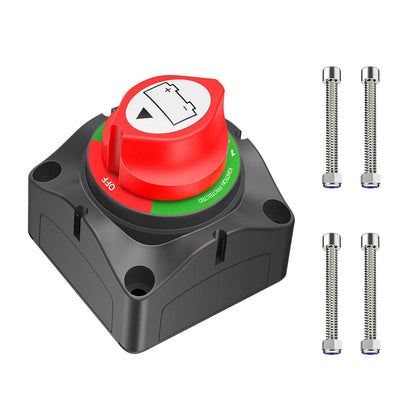

Waywe Battery Switch On Off 12V 48V Waterproof Heavy Duty Power Cut Master Kill Switches Ignition Protected Disconnect Isolator for Car Vehicle RV and Marine Boat
Waywe Battery Switch On Off 12V 48V Waterproof Heavy Duty Power Cut Master Kill Switches Ignition Protected Disconnect Isolator for Car Vehicle RV and Marine Boat
Couldn't load pickup availability
About this item
- Compatible: Used for DC 12V - 48V battery systems to isolate and secure the electrical system, can stand alone or be locked together with other switch. Its purpose is to eliminate any power draw from the battery and disconnects the battery safely. Protects against electrical fires and theft when equipment is not in use, it also provides a reliable way to shut down electrical power during maintenance and protect batteries from the excessive drain.
- Operation: On and Off 2 positions, 275A continuous at DC 12V, 455A intermittent at DC 12V, 1250A momentary at DC 12V.
- Superior Quality: ABS rotary knob design, reinforced nylon housing which is sturdy and durable. Four removable side pads provide access to up to 1/0 cables. Rear cover insulates terminals against any short circuits, Equipped with 4 bolts.
- Widely used for car, marine boat, RV, camper, travel trailer, truck, ATV, UTV, battery banks and other 12V-48V DC vehicles.
- Package include:1x battery switch,4 bolts&screws incuded. 2-Year Warranty by Waywe.
2V-48 VDC Battery Disconnect Switch
Widely used in Cars, RVs, Campers and Marine Boats, Also Suitable For Electrical Equipment's Switch
Waywe battery switch help protects against electrical fires and theft when equipment is not in use, it also provides a reliable way to shut down electrical power during maintenance and protect batteries from the excessive drain. and disconnect the battery safely.
It was widely used for 12V -48VDC batteries to isolate and secure the electrical system and can stand alone or be locked together with other switches. A direct way to avoid the battery from draining off.
Package Includes:
- Removable side pads
- 4 tined copper studs
- wiring diagram
Battery Kill Switch
The switch does not have polarity, we recommend installing an in-line negative (-) cable of the battery.
Please make sure that the connected current is not higher than 275A continuous, once it exceeds 275A, the switch will burn out!
Specifications:
- Operation: 12V-48 VDC systems, On/Off 2 position. Fit for Car, Vehicle, RV,Marine,Boat and other electrical equipment
- 275A continuous at 12VDC (1 hour)
- 455A intermittent at 12VDC ( (5 minutes)
- 1250A momentary at 12VDC ((10 seconds)

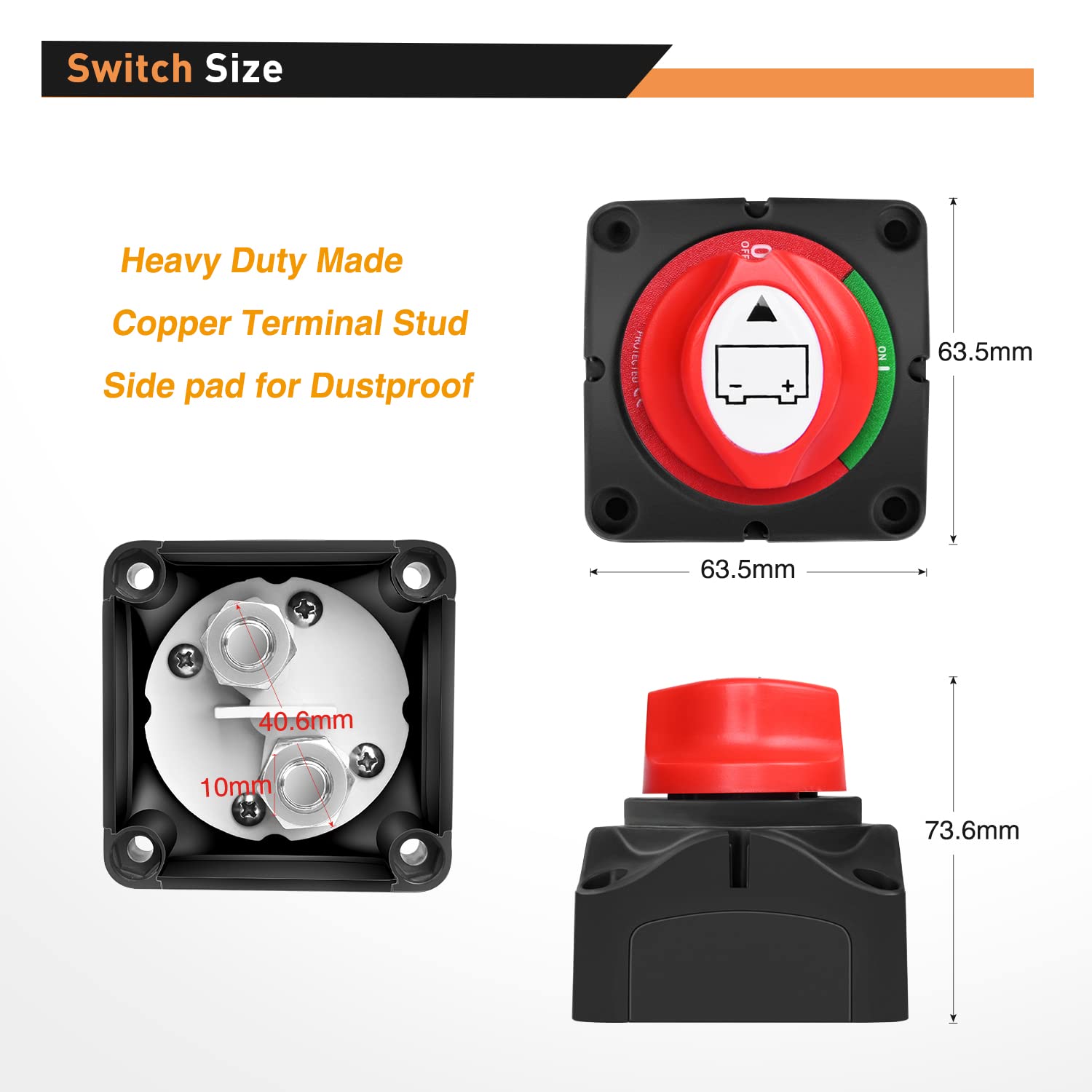

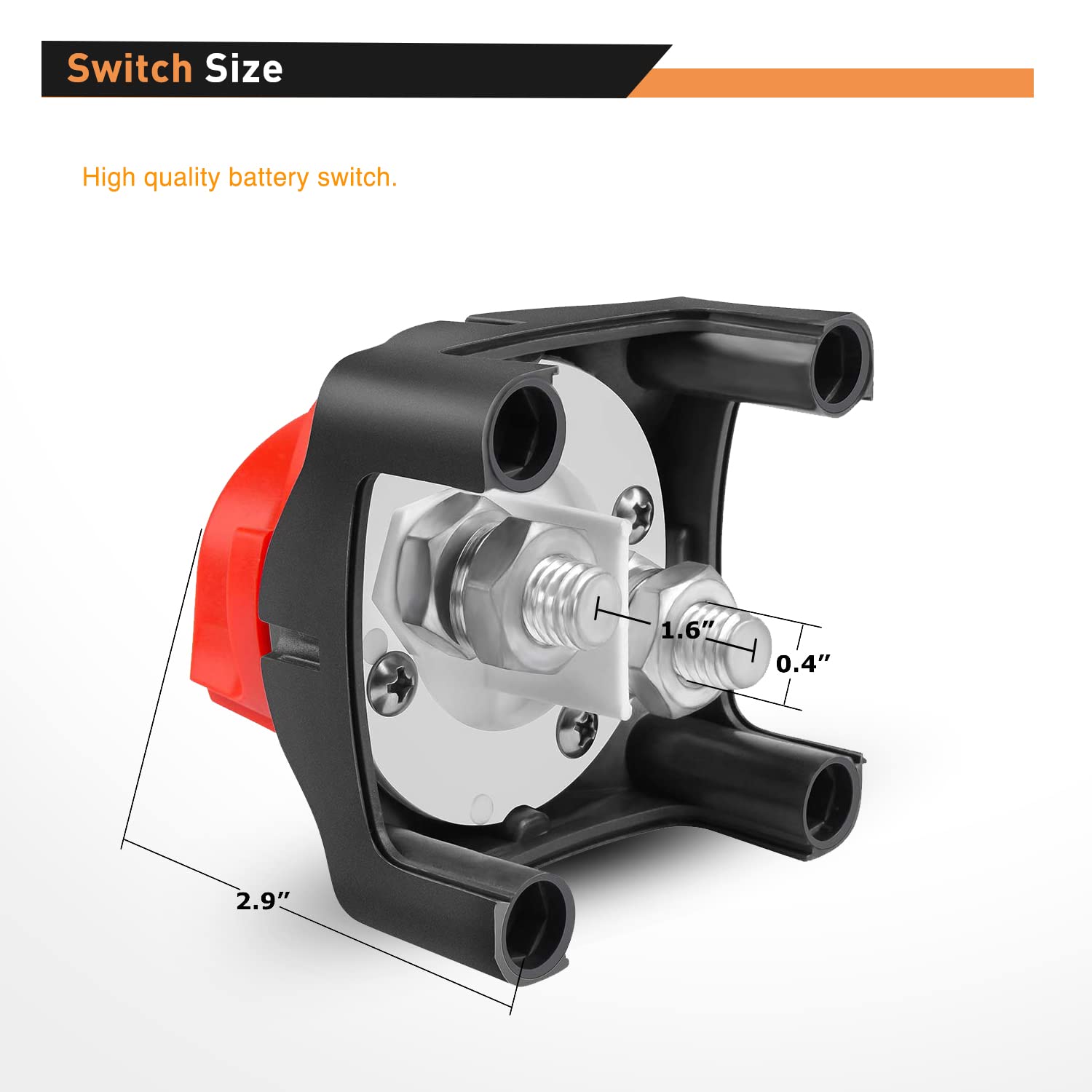

- Copper terminal stud size: 3/8" (10 mm)
Features
Well Built Heavy Duty Cut Off Switch
Panel-mounted switches are designed specifically for panel mount applications; Countersunk recesses for surface mount application.
ABS plastic housing and on/off switch knob
- ABS plastic housing, durable made for safety use, rear cover insulates terminals against any short circuit.
- Used for 12 - 48VDC systems to isolate and secure the electrical system.
- Can stand alone or be locked together with other switch.
Super Safety
Battery disconnect switch can disconnect the battery safely, eliminate any power draw from the battery when vehicle or boat is not in use.
Brass Package Included:stud and nut
- 1* Battery Switch
- Backing Pad
- Side Pad*4
- Mounting Bolt*4

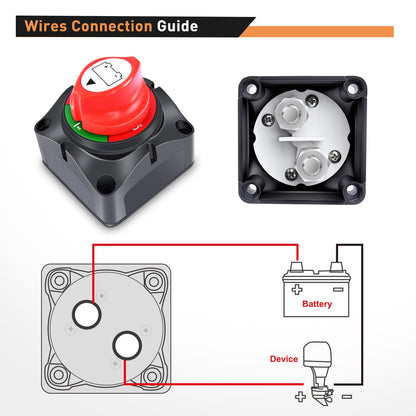

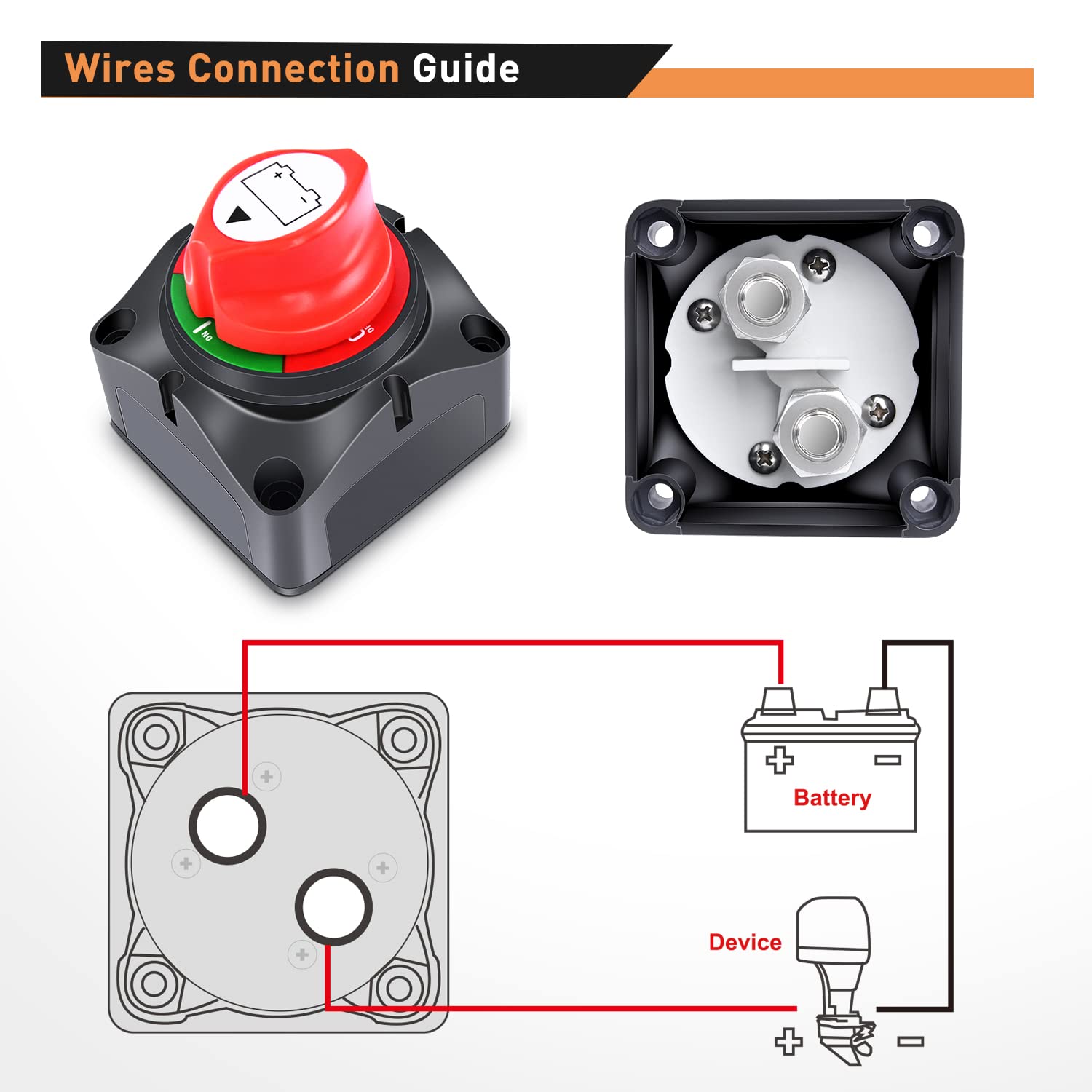

Wiring Method

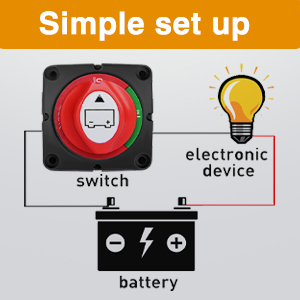

Simple set up
The most normal way to set up the switch is to connect the master switch to the battery and electronic devices directly.

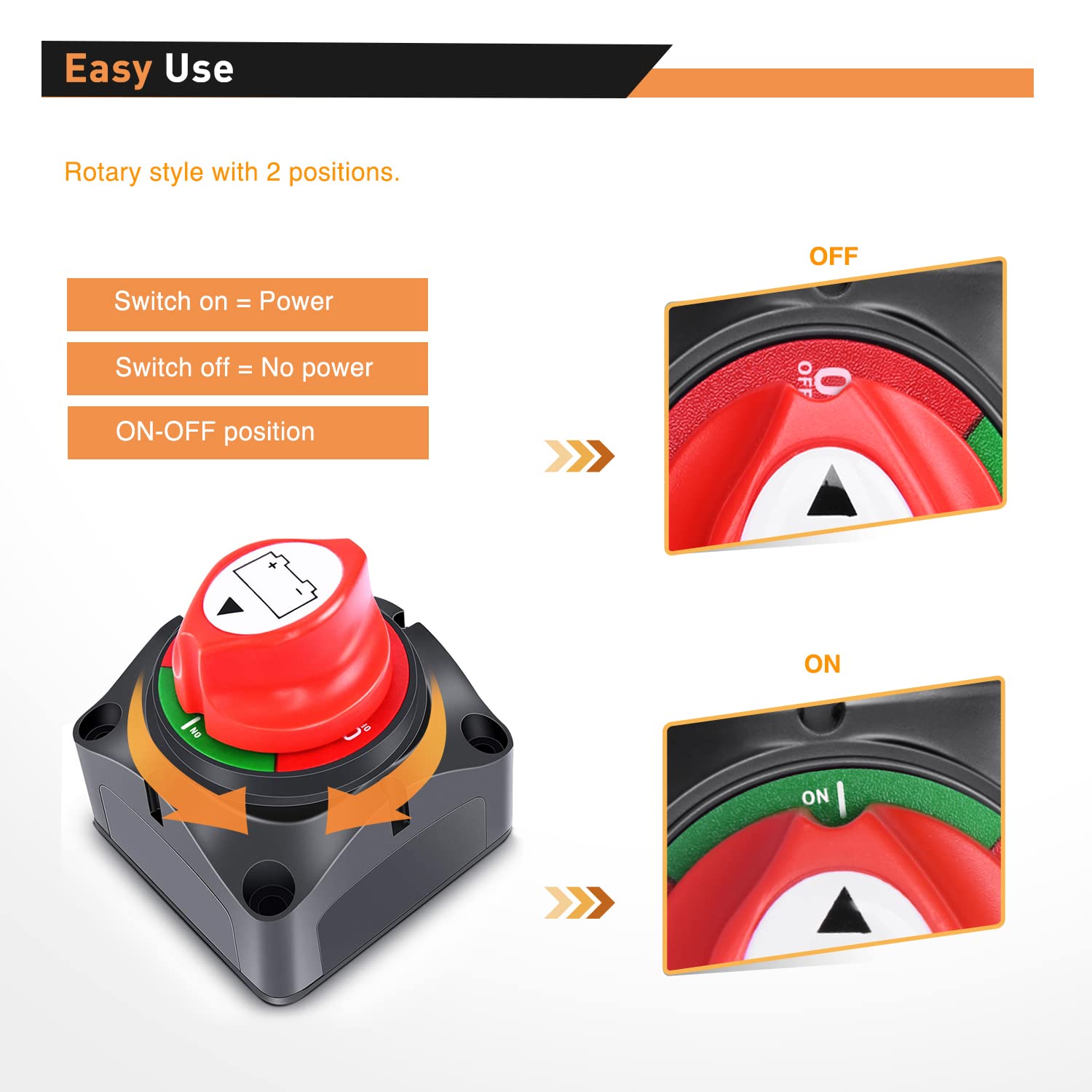

Simple Operation:
Switch on = Power on
Switch off = Power off

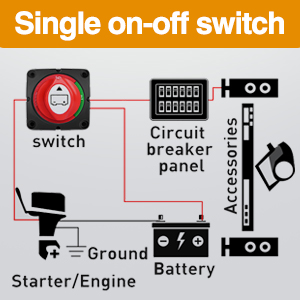

Single on-off switch
This battery switch can also be used as an on-off switch to control the accessory power, its function is just like others toggle switches or rockers switches.

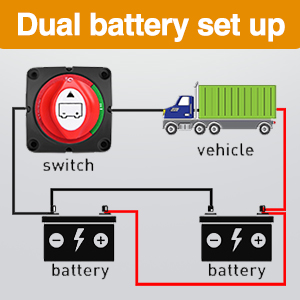

dual battery set up
The 2-position battery kill switch can be also connected to 2 batteries by following this wiring diagram. Please remember that it will control the battery power of the 2 batteries simultaneously, can not be controlled separetly.
Applications
Wide Application
Product is suitable for controlling all electronic equipment on board.Available for upgrading headlights switch, fog light switch, wide light switch, car refrigerator switch, car vacuum cleaner switch replacement.etc.

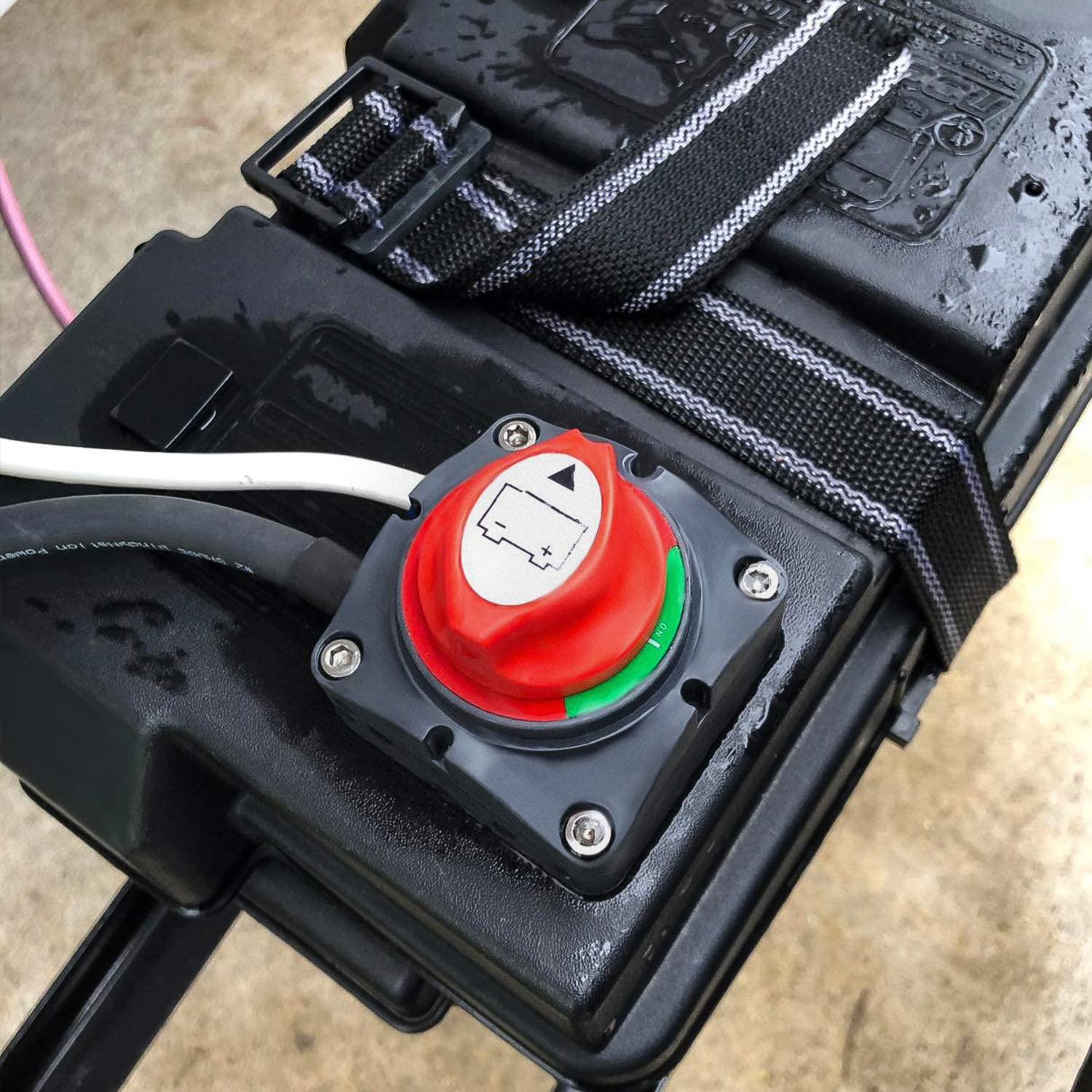

Use on Marine Boat
Marine-grade Construction and IP65 Waterproof: It adopt high quality Aluminum panel, Scratch-proof and Corrosion Resistant, with rubber sealed cap for all sockets dust-tight and debris-proof.
Car Electronic Device
Product is suitable for UTVs and ATVs.
Installation is simple and can be mounted horizontally or vertically. You can even use it at -25°(Min) or 80°(max).Suitable for most DC 12V-24V cars, UTV/ATV, trucks, trailer, RV, caravan, bus, marine boat, yacht, airplane, etc.
